To take the pictures in my infrared photography album, I had to hack a camera to see the infrared spectrum. Digital cameras are inherently sensitive to near-infrared (just past red light on the spectrum) light, but manufacturers place an infrared-blocking filter right over the digital sensor to remove the effects of this sensitivity. I opened up a Canon A720IS camera and physically removed this filter, allowing the sensor to record both visible and infrared light. To complete the infrared camera, I had to put a filter that blocks visible light, but allows infrared light to pass on the camera. I used a piece of exposed, developed film over the lens to do this. This is a set of pictures documenting the removal of the small filter inside the camera.

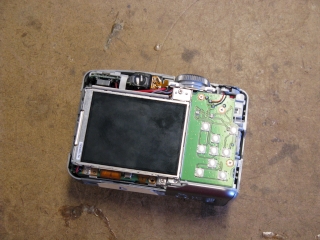

back panel removed
back panel removed

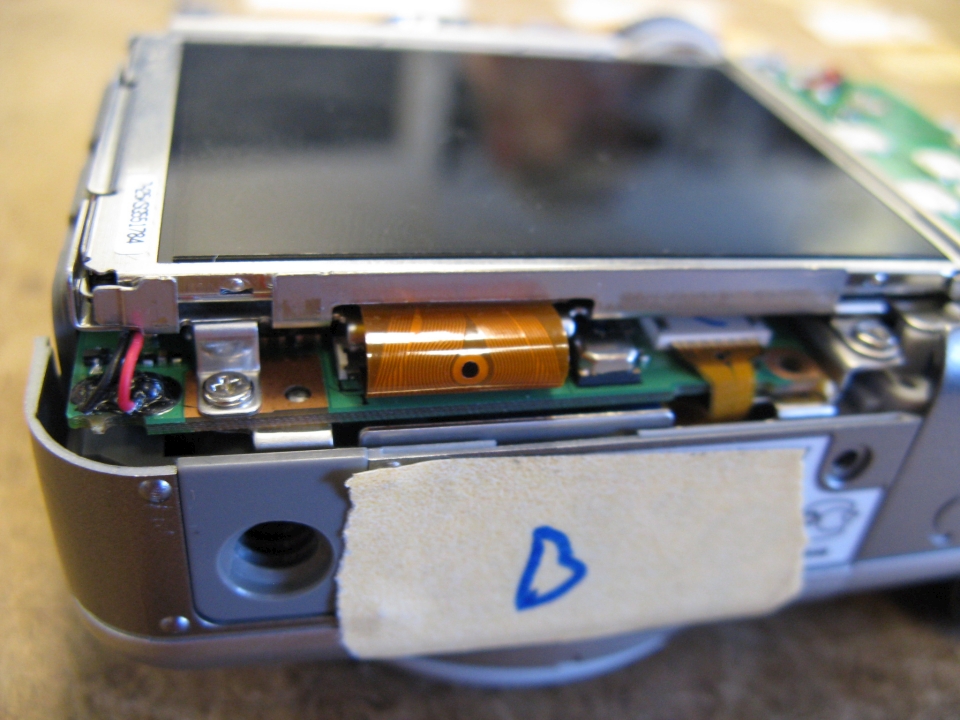

LCD screen detail
LCD screen detail

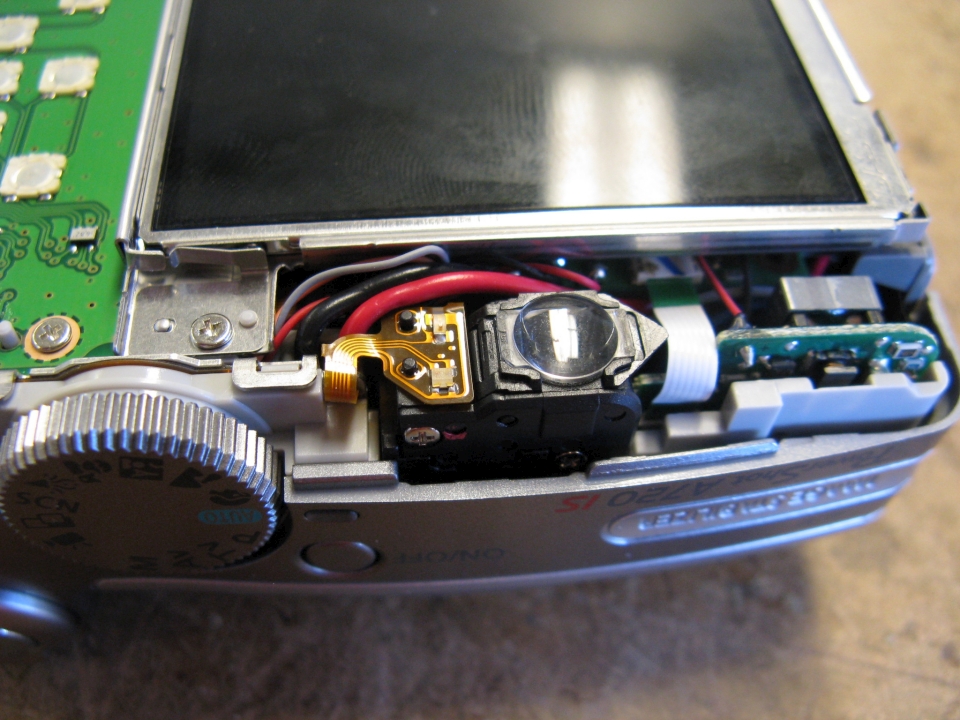

viewfinder detail
viewfinder detail
DESC4
DESC4

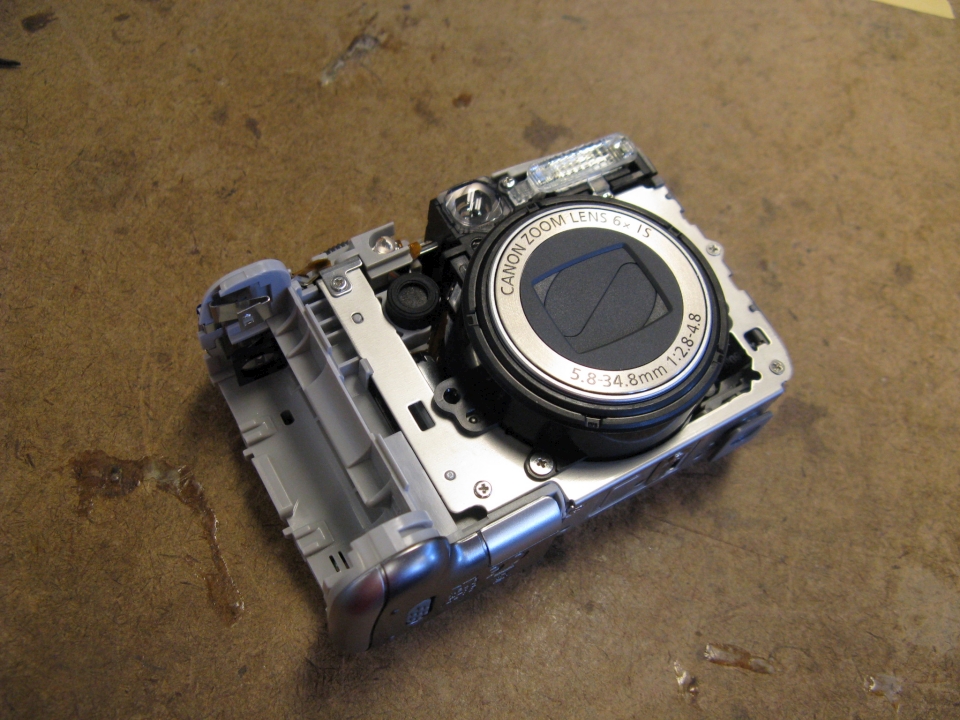

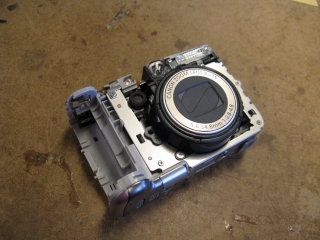

front panel removed
front panel removed

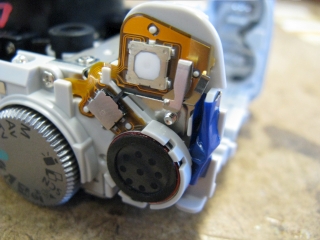

shutter button and speaker
shutter button and speaker

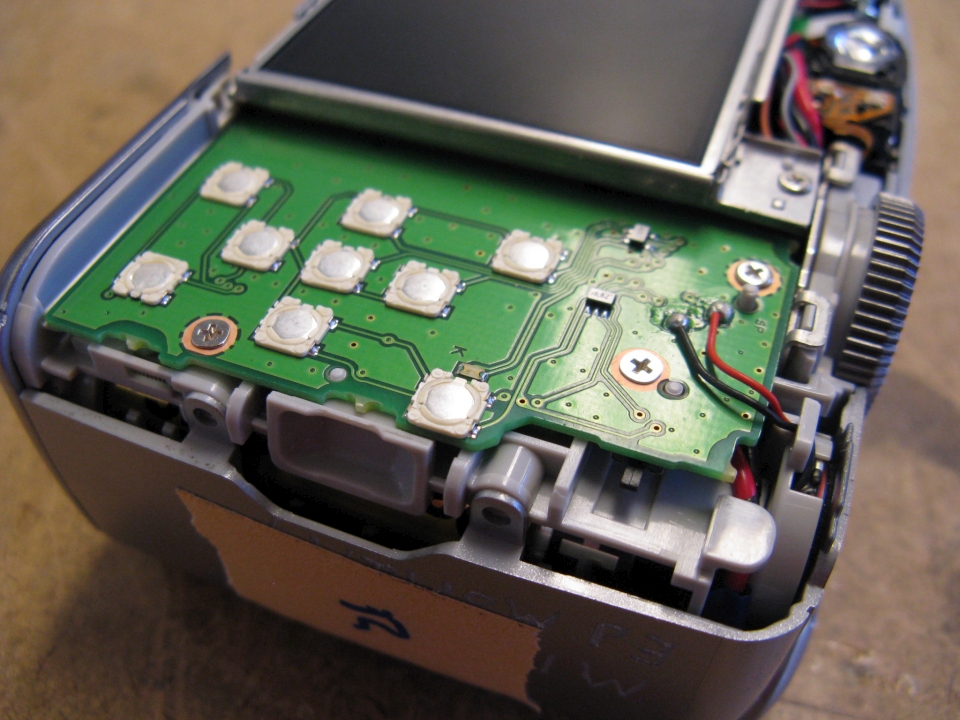

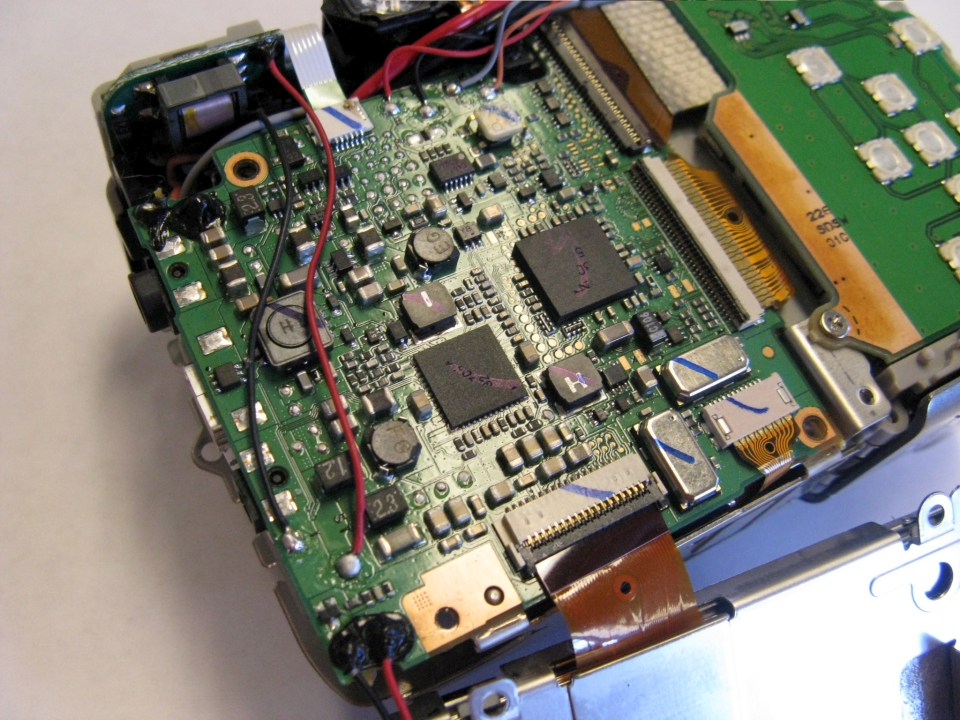

controller board
controller board

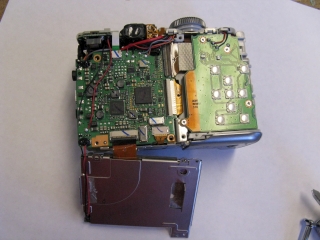

lcd screen removed
lcd screen removed

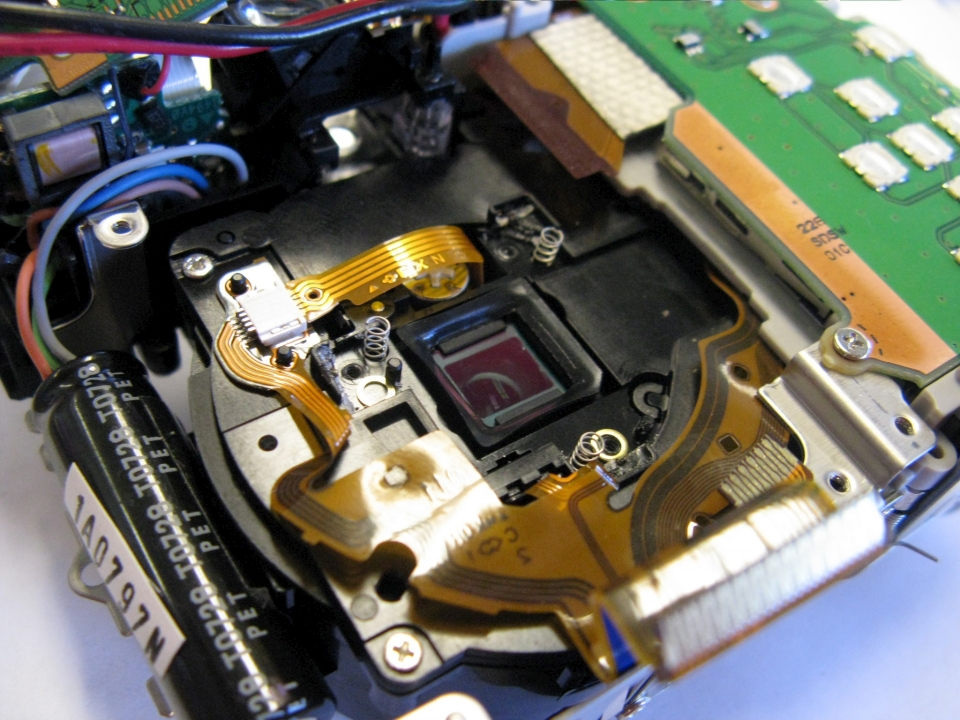

sensor removed showing infrared filter
sensor removed showing infrared filter

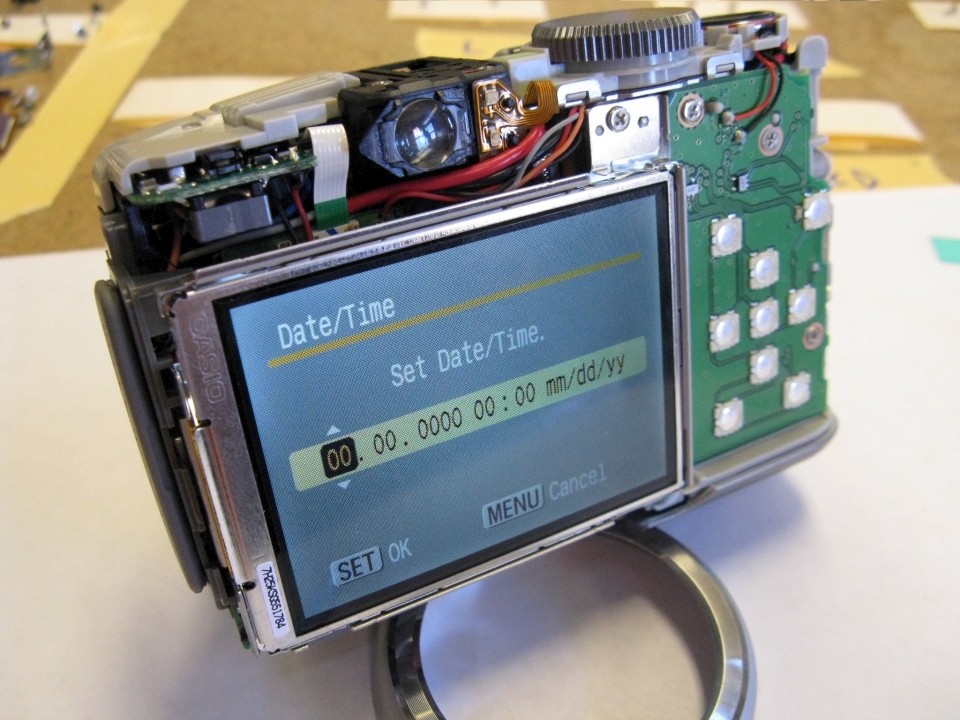

the camera still works
the camera still works

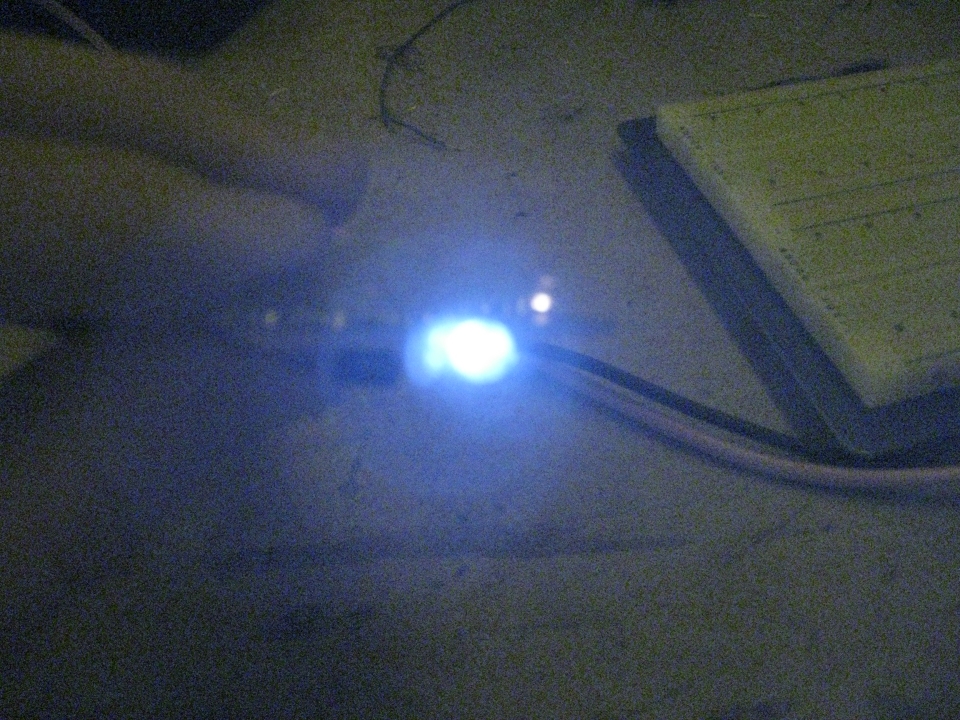

remote control IR LED, before the hack
remote control IR LED, before the hack

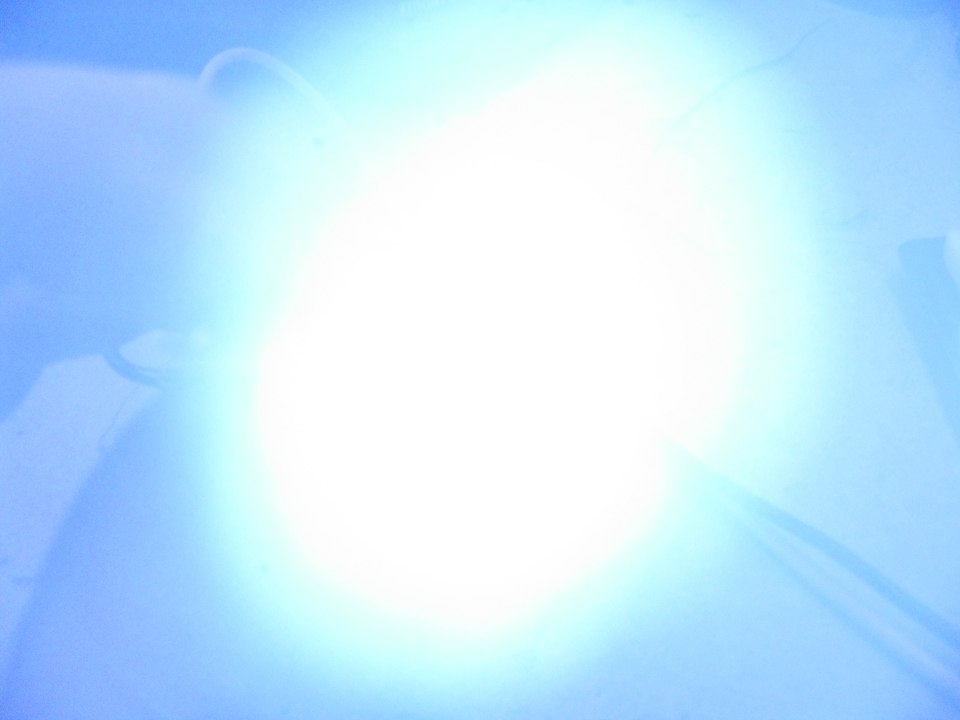

remote control IR LED, after the hack
remote control IR LED, after the hack
